Precision Disc Cutter with 6 - 24mm Dia

FOB Reference Price:Get Latest Price
US $1,200-2,500 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
GELON
Model Number:
GN-CP20
Battery Type:
Li-ion
Size:
166mm*196mm*233mm
Nominal Capacity:
disc cutter
Nominal Voltage:
1.5V
Product Name:
Disc cutter
Application:
For coin cell cases
Type:
Lithium Botton Cells
Certificate:
CE RoHS
Package:
wood package
Weight:
10kg
warranty:
one year
cutting die:
6 - 24mm Dia
Supply 1:
lithium ion battery materials
Supply 2:
lithium ion battery equipment
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard exporting package
Port
Qingdao
Lead Time :
Within about 15 days
Product Description

 Precision Disc Cutter with 6 - 24mm Dia Cutting Die Optional

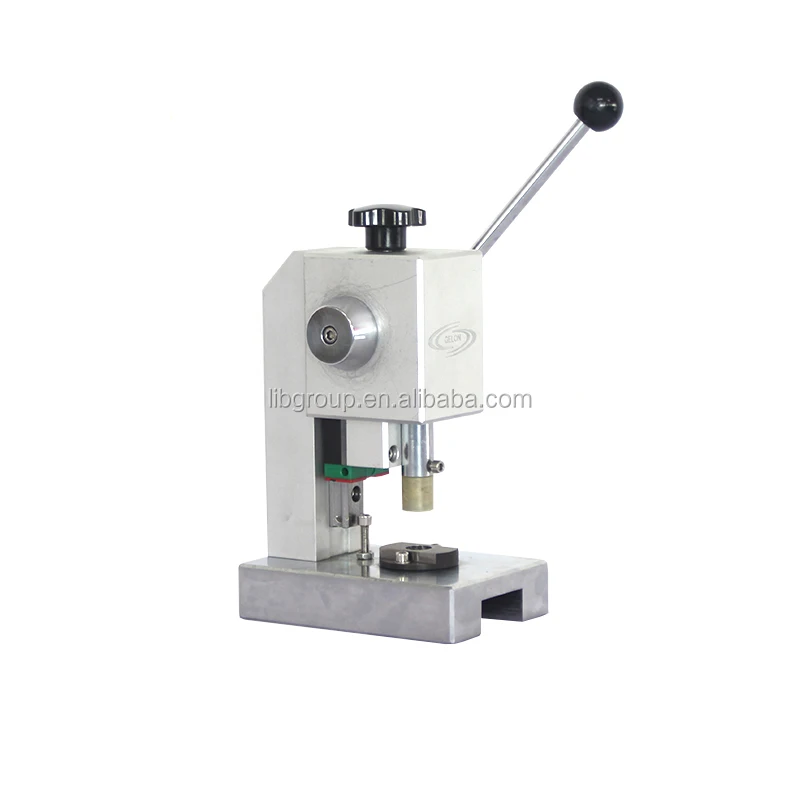

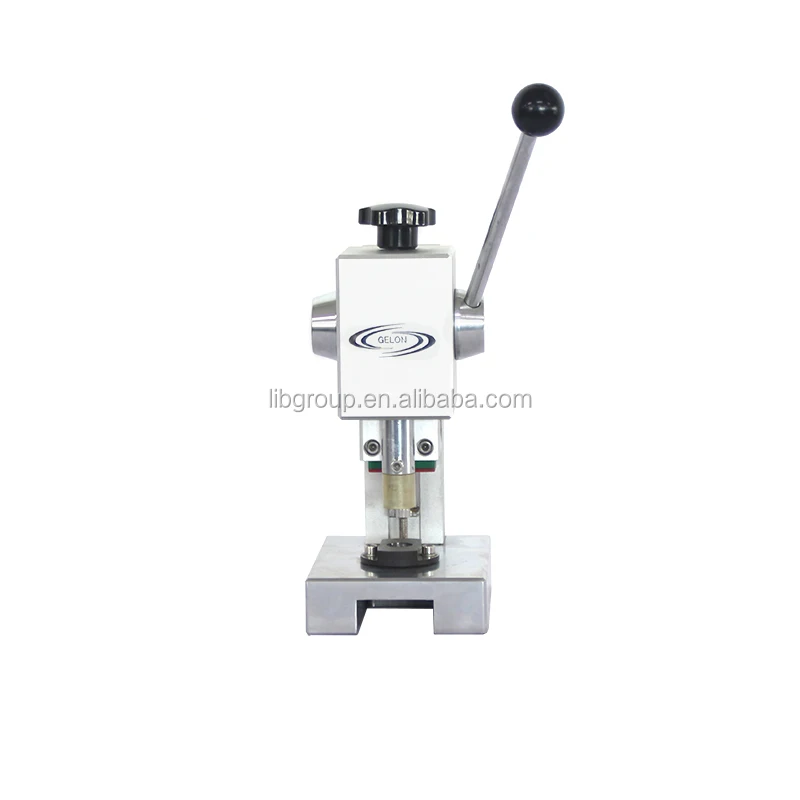

This machine is a compact disc cutter with quality sliding rail with ball bearing for precision cutting. It can be easily placed into a glove box with a transition chamber diameter larger than 230mm. This tool is manually operated and is designed for cutting round discs from a thin metal sheet/foil (< 0.5 mm) or separator film (<30um).  The resulting discs can be used as electrode/separator discs of split test cell and coin cell for battery researchers as well as TEM sample preparation.



Specification :

coin cell model

all kind of AG,CR,LIR coin cell m2032,2025,2016 and etc ,according to request

mold materials

high quality die block steel,heat treatment to HRC60 hardness

mold precision

+-0.01mm

size(L*W*H)

166mm*196mm*233mm

weight

10kg



Optional accessories:

Die:6-24mm dia according to customer’s request







Packaging & Shipping






Our Services



We also can supply others:



1.) full set of lithium battery materials,including :

 LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Alumimun foil,copper foil,lithium foil,battery separator,electrode,electrolyte,etc.

2.) full set of lithium battery equipments,for example:

mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealing machine--glove box--testing machine,etc.

3) full set of lithium battery technology.

we can design the laboratory and production line,according to customer's request.
