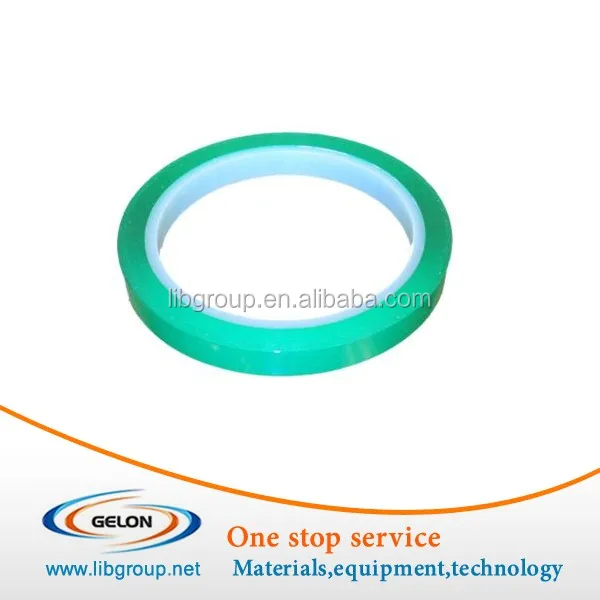

Polymer Tape For Heat Sealing Pouch Cell Tabs hot melt adhesive

FOB Reference Price:Get Latest Price
US $125-160 / Rolls | 1 Roll/Rolls (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Material:
Polymer Tape
Adhesive Type:
Hot Melt
Design Printing:
No Printing
Place of Origin:
Shandong, China (Mainland)
Brand Name:
GELON
Model Number:
GN-8
Name:
Hot Melt Adhesive
Application:
Heat Sealing Pouch Cell Tabs
Width:
8MM
Length:
100M
supply 1:
full set of lithium ion battery materials
supply 2:
full set of lithium ion battery equipment
Supply Ability
Supply Ability:
1000 Roll/Rolls per Week
Packaging & Delivery
Packaging Details
standard exporting package
Port
Qingdao
Lead Time :
Shipped in 5 days after payment
Product Description



Polymer Tape For Heat Sealing Pouch Cell Tabs hot melt adhesive



ItemDescription
ColorMilk-White
Thickness100 um
Width8mm
Length100m for 1 roll
MaterialEnhanced Sulfurized Polymer Resin Material (3 Layers
Lamination)
Outside Layers (Both Sides) Thermal Softening Index116ºC/ 3 Seconds/ 0.3Mpa/ 180ºC (Reference only)
Outside Layers (Both Sides) Thermal Melting Index135ºC/ 3 Seconds/ 0.3Mpa/ 180ºC (Reference only)
Middle Layers (Both Sides) Thermal Softening Index145ºC/ 3 Seconds/ 0.3Mpa/ 180ºC (Reference only)
Middle Layers (Both Sides) Thermal Melting Index175ºC/ 3 Seconds/ 0.3Mpa/ 180ºC (Reference only)
Removal Strength from Tab> 15N/15mm
Removal Strength from Al Lamination Film (Cell Case)> 35N/15mm

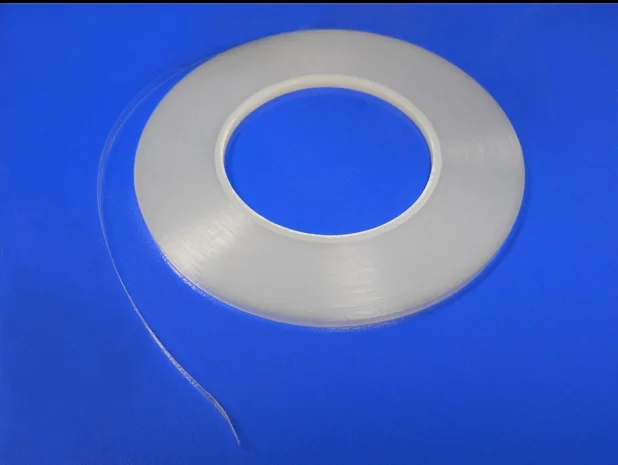

battery tabs glue.jpg

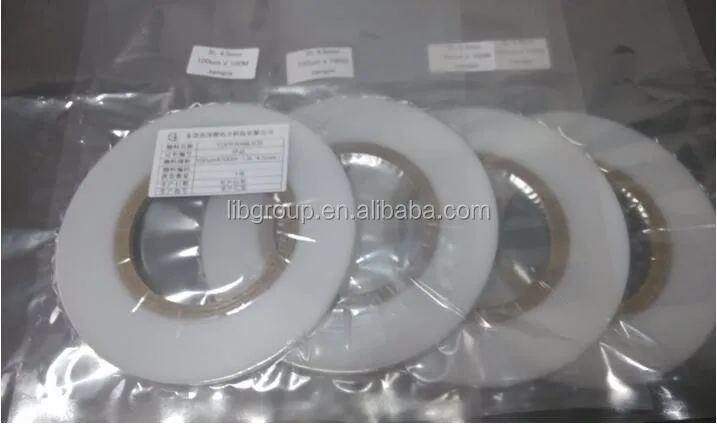

separator tape.jpg



Our Services

Besides,We also can supply others:



1.)full set of lithium battery materials,

including : LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Alumimun foil,copper foils,battery separator,etc.



2.)full set of lithium battery equipments,

for example: mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.



3)full set of lithium battery technology

we can design the laboratory and production line,according to customer's request.



lithium ion battery material and equipments.jpg



Company Information



--In 2013, our Bolivia Project  for EV batery and mobile battery production line has

completed successfully.



We Gelon LIB Group offer one-stop service for Bolovia from establishing the battery making factory, supply li ion battery materials and equipment, technology support...until produce the EV battery and gain the final successful. --Bolivia  president and goverment gave a full support and confirm.



--And our other project for Indonisia also gain a great success this year( for pouch cells and cylinder cells).





Establishing the battery making factory:



bolivia  project plant



Supply li ion battery materials and equipment:



Technology support:




More information about our battery products you can visit

our website:



Turn-key Project of Li Battery  (Lab, Mobile, EV) Production Line

Video Link:
http://v.youku.com/v_show/id_XNjg5ODczMTg0.html

In Feb. 2014, the turn-key project in Bolivia was completed successfully.
Bolivia News Videos:
http://v.youku.com/v_show/id_XNjg4MTgwOTIw.html
Project Opening:
http://v.youku.com/v_show/id_XNjg5Mzg3NjUy.html
http://v.youku.com/v_show/id_XNjg5OTE5OTMy.html

Coating Process:
http://v.youku.com/v_show/id_XNjg5ODc3OTI4.html
Calendaring/Pressing Process:
http://v.youku.com/v_show/id_XNjg5NTE0NTU2.html



Company Information



Our factory:




Some of our best customers:






For more details,please feel free to contact us by:
